Details

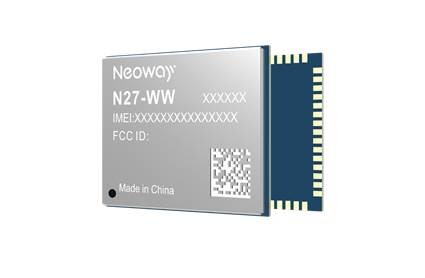

Neoway N27 Module
Contact us for pricing, datasheet and other information including data plans for T-Mobile, AT&T, Verizon or other international regions.
Product Description
- LTE Cat 4 module optimized for M2M and IoT applications
- N75 can be used in most regions including North-America, Europe,
- Japan where LTE networks are deployed
- Feature refinements:
- supports DTMF*, eCall* and DFOTA*
- N75 is an optimal option for energy metering, telematics, industrial router,
- industrial PAD, video surveillance, environmental monitoring, etc.
Features
- Qualcomm-based MDM92x5 chipset
Enhanced Features:
- SDIO Interface for WLAN Function (Optional)
- SDIO Interface for SD/TF Card Function (Optional)
- PCM/I2C Interface for Voice Function (Optional)
- Dual-tone multi-frequency signaling (DTMF)
- USIM Card Detection
- Differential Firmware Over-the-Air (DFOTA)
- GNSS:
- (not supported in N75-NF)
- - GPS, GLONASS, BDS, Galileo and QZSS
- - Receiver Type
- GPS L1/BDS B1/GLONASS G1/Galileo E1/QZSS L1
- - TTFF (Open air with GPS only)
- Cold starts: <35s
- Hot starts: <2s
- - Sensitivity:
- Acquisition: -149dbm(GPS)/-148.5dbm(GLONASS)
- Tracking: -158.7dbm(GPS)/-158.2dbm(GLONASS)
- - Position Accuracy (Open air): <3m(CEP50)
- - Navigation update rate: 1Hz
